Function block CIA405.NMT controls network management functions of one or all CANopen nodes.

Input:

NETWORK	USINT	see ⇘ CIA405.CIA405BASE
ENABLE	BOOL	see ⇘ CIA405.CIA405BASE
TIMEOUT	UDINT	see ⇘ CIA405.CIA405BASE
STATE	CIA405.TRANSITION_ STATE	initial: 0
DEVICE	CIA405.DEVICE	Additional device information connected to STATE; 0 means local device range: 0 … 127 initial: 0

Output:

CONFIRM

BOOL

ERROR

CIA405.CANOPEN_

KERNEL_ERROR

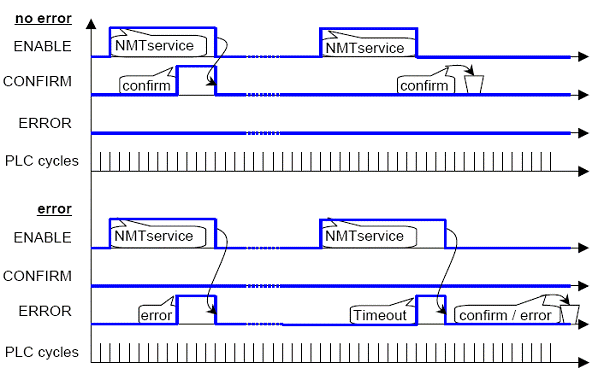

插图 568: NMT service diagram

For behavior of ENABLE and CONFIRM see chapter ⇘ “Control mechanism”.
For inputs NETWORK and TIMEOUT see chapter ⇘ Additional parameters .
NMTservice: the NMTservice event is the request to the addressed node (DEVICE=0 means: local device) to perform the requested state transition.
confirm: the event confirm is the positive acknowledgement that the service is processed without error, for example the CANopen kernel returns no error to the function block.
error: the event error is the negative acknowledgement that the service is processes with error, for example the CANopen kernel returns an error to the function block.
Timeout: the time control starts with a rising edge at ENABLE. Timeout event occurs, when there is no acknowledgement returned to the function block before time control reaches the timeout value. When timeout occurs, ERROR = 3.
